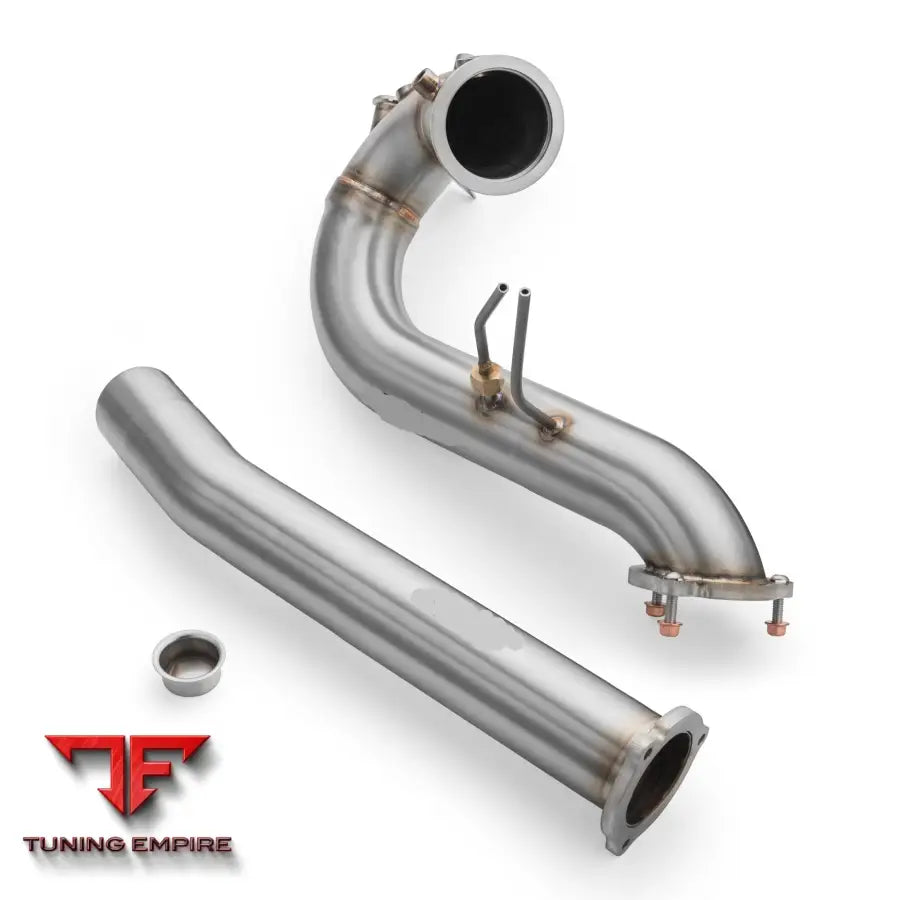

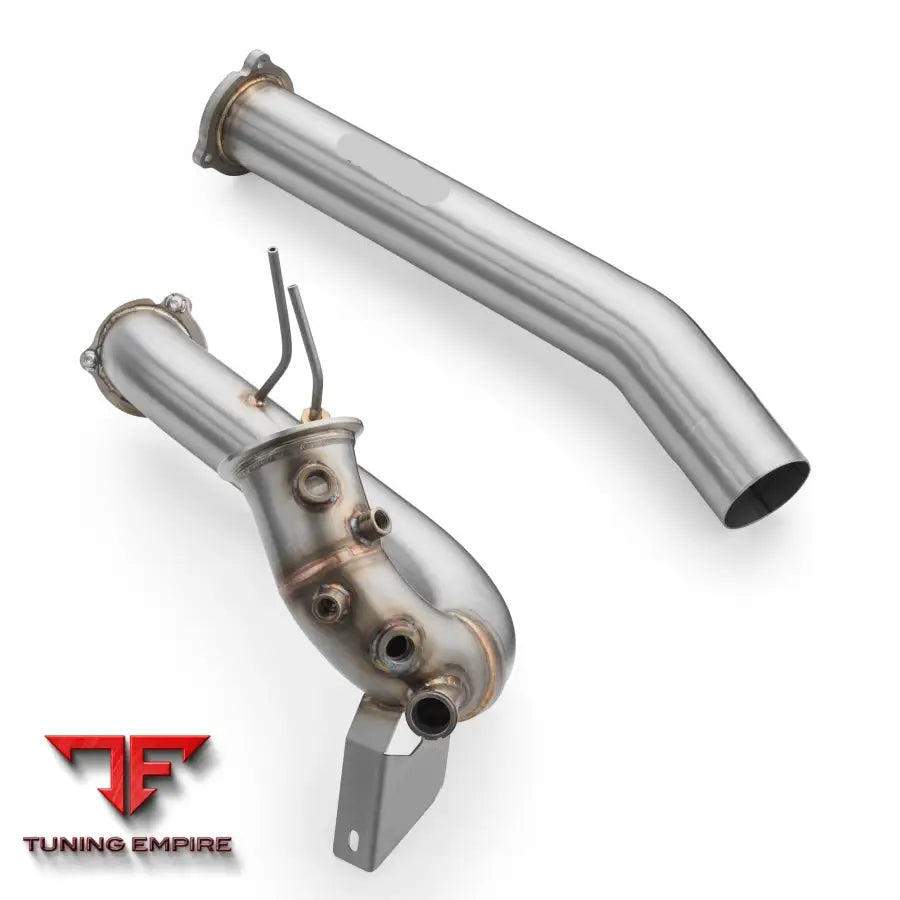

AUDI A5 S5 / CABRIOLET / SPORTBACK / COUPE 3.0 TDI DOWNPIPE SET WITH HEAT SHIELD

Downpipe AUDI A5 S5 / Cabriolet / Sportback / Coupe 3.0 TDI +heat shield

3.0 TDI
2016-2021
286 hp
Quattro

Pipe diameter - 76 mm

Downpipe set for AUDI A5 S5 / Cabriolet / Sportback / Coupe 3.0 TDI + heat shield

Options to choose from:

• PROM.220109+220110 - Downpipe straight through and Decat without silencer.
• PROM.220109+220110T - Downpipe straight through and Decat with silencer.
• PROM.220109S+220110 - Downpipe straight through with muffler and Decat without silencer.
• PROM.220109S+220110T - Downpipe straight through with muffler and Decat with silencer.
• PROM.220109H+220110 - Downpipe straight through with heat shield and Decat without silencer.
• PROM.220109H+220110T - Downpipe straight through with heat shield and Decat with silencer.
• PROM.220109SH+220110 - Downpipe straight through with silencer in heat shield without silencer.
• PROM.220109SH+220110T - Downpipe straight through with silencer in heat shield with silencer.
• PROM.220109C/E6+220110 - Downpipe with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard without silencer.
• PROM.220109C/E6+220110T - Downpipe with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard with silencer.
• PROM.220109CH/E6+220110 - Downpipe in heat shield with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard without silencer.
• PROM.220109CH/E6+220110T - Downpipe in heat shield with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard with silencer.
• PROM.220109C/OBD+220110 - Downpipe with catalytic converter 90603444 with 200 cpsi capacity, complying with the emission standard for the need of OBD without silencer.
• PROM.220109C/OBD+220110T - Downpipe with catalytic converter 90603444 with 200 cpsi capacity, complying with the emission standard for the need of OBD with silencer.
• PROM.220109CH/OBD+220110 - Downpipe in heat shield with catalytic converter 90603444 with 200 cpsi capacity, complying with emission standard for the need of OBD without silencer.
• PROM.220109CH/OBD+220110T - Downpipe in heat shield with catalytic converter 90603444 with 200 cpsi capacity, complying with emission standard for the need of OBD with silencer.
• PROM.220109C/MS+220110 - Downpipe with catalytic converter 90603242 with a 100 cpsi capacity, complying with the emission standard for the need of Motorsport without silencer.
• PROM.220109CH/MS+220110T - Downpipe with catalytic converter 90603242 with a 100 cpsi capacity, complying with the emission standard for the need of Motorsport with silencer.
• PROM.220109CH/MS+220110 - Downpipe in heat shield with catalytic converter 90603242 with 100 cpsi capacity, complying with the emission standard for the need of Motorsport without silencer.
• PROM.220109CH/MS+220110T - Downpipe in heat shield with catalytic converter 90603242 with 100 cpsi capacity, complying with the emission standard for the need of Motorsport with silencer.

Downpipe set for  AUDI A5 S5 / Cabriolet / Sportback / Coupe 3.0 TDI + thermal shield.
has the following connections:

• one socket for the lambda probe
• two pipes for pressure difference sender sensor
• two sockets for the exhaust gas temperature sensor
• one socket for NOx sensor
• socket for injector for reduction agent
• 3 screws with nuts and washers included
• EGR plug
• Decat with or without silencer

Downpipe set for AUDI A5 S5 / Cabriolet / Sportback / Coupe 3.0 TDI+ thermal shield - OE Numbers:

• 8W0254750SX
• 8W0254751CX
• 8W0254751C
• 8W0254751BX
• 8W0254750Q
• 8W0254750S
• 4K0254450F

Downpipe entirely made of acid-resistant steel (T304, X5CrNi18-10, 1.4301, AISI 304, 0H18N9). Each element of the product made with CNC technology.
