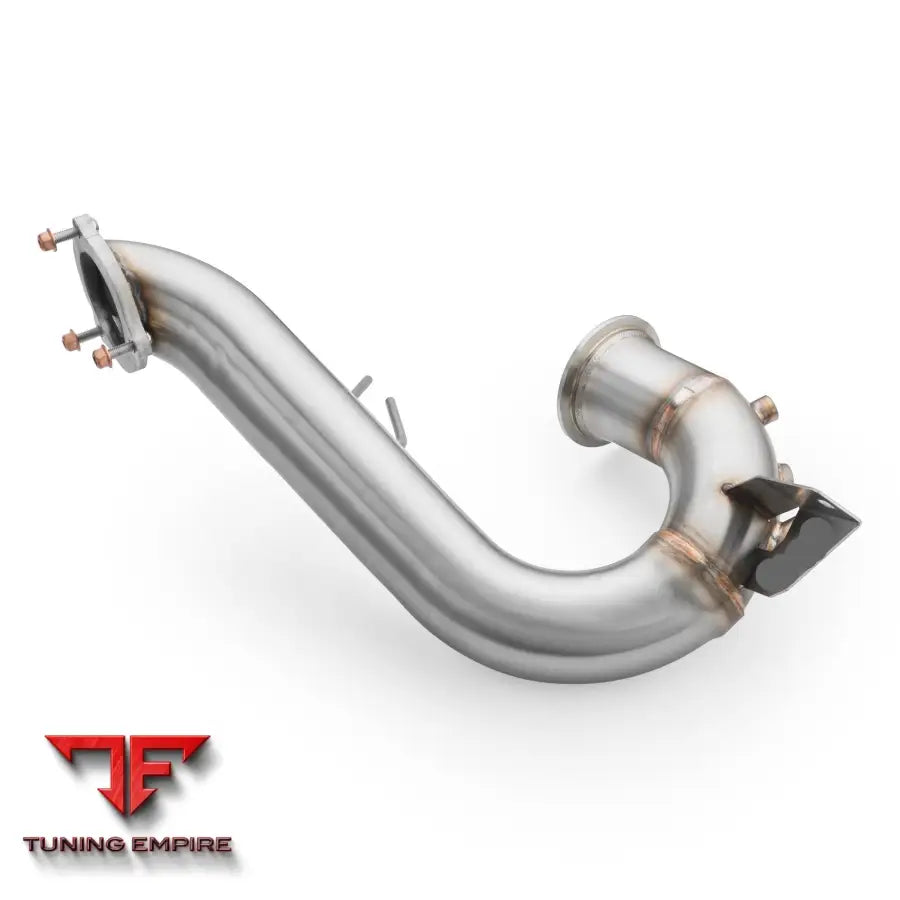

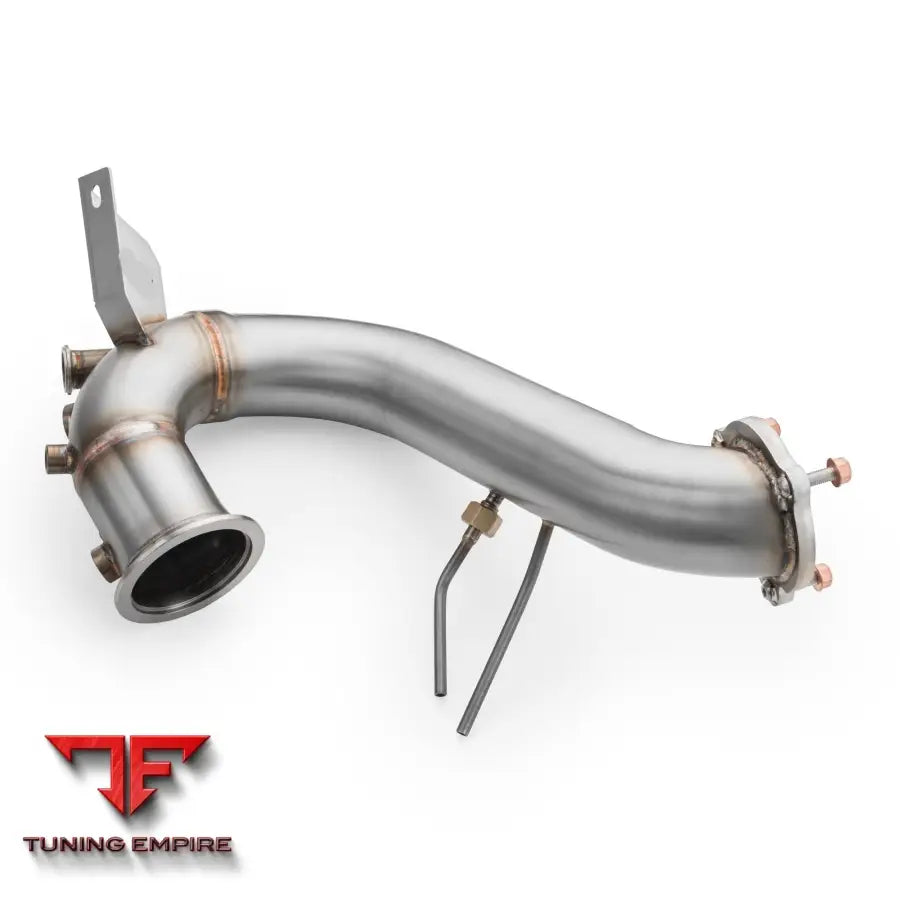

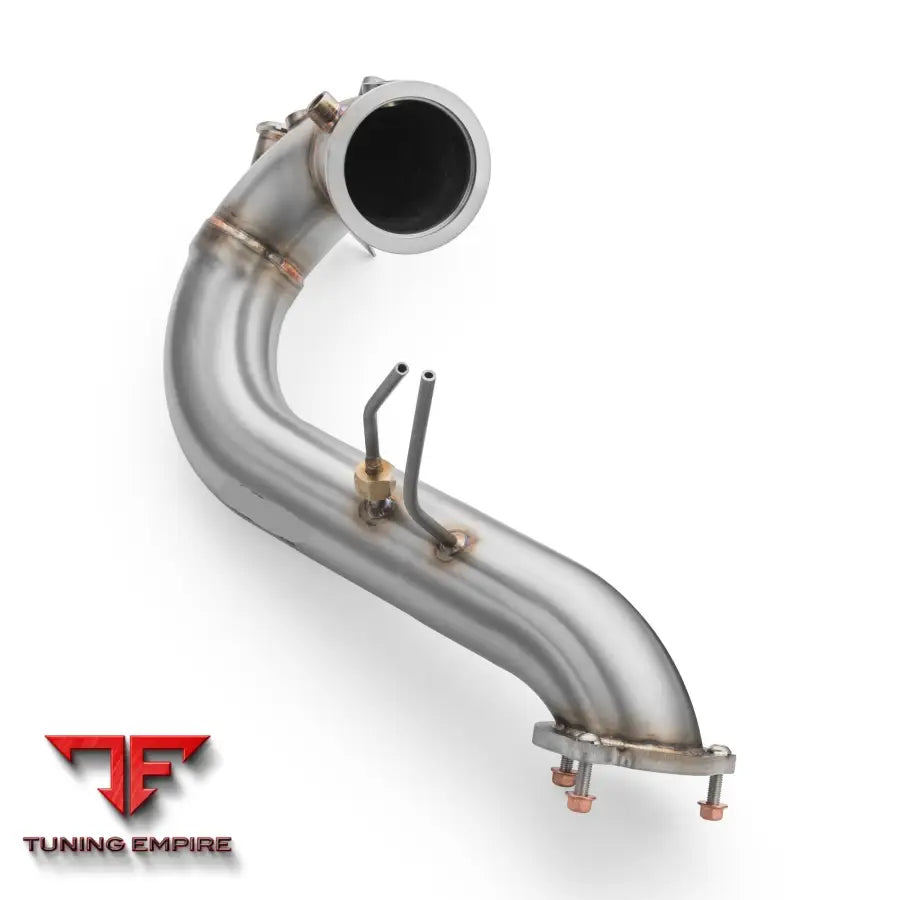

Downpipe AUDI A6 S6 / Avant / Sportback / Avant Quattro 3.0 TDI +heat shield

3.0 TDI

2019-2021

286 hp
Quattro

Pipe diameter - 76 mm

Downpipe AUDI A6 S6 / Avant / Sportback / Avant Quattro 3.0 TDI + heat shield

Options to choose from:

  • 220109 - Downpipe straight through.
  • 220109S - Downpipe straight through with muffler.
  • 220109H - Downpipe straight through with heat shield.
  • 220109SH - Downpipe straight through with silencer in heat shield.
  • 220109C/E6 - Downpipe with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard.
  • 220109CH/E6 - Downpipe in heat shield with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard.
  • 220109C/OBD - Downpipe with catalytic converter 90603444 with 200 cpsi capacity, complying with the emission standard for the need of OBD.
  • 220109CH/OBD - Downpipe in heat shield with catalytic converter 90603444 with 200 cpsi capacity, complying with emission standard for the need of OBD.
  • 220109C/MS - Downpipe with catalytic converter 90603242 with a 100 cpsi capacity, complying with the emission standard for the need of Motorsport.
  • 220109CH/MS - Downpipe in heat shield with catalytic converter 90603242 with 100 cpsi capacity, complying with the emission standard for the need of Motorsport.

Downpipe AUDI A6 S6 / Avant / Sportback / Avant Quattro 3.0 TDI + thermal shield.

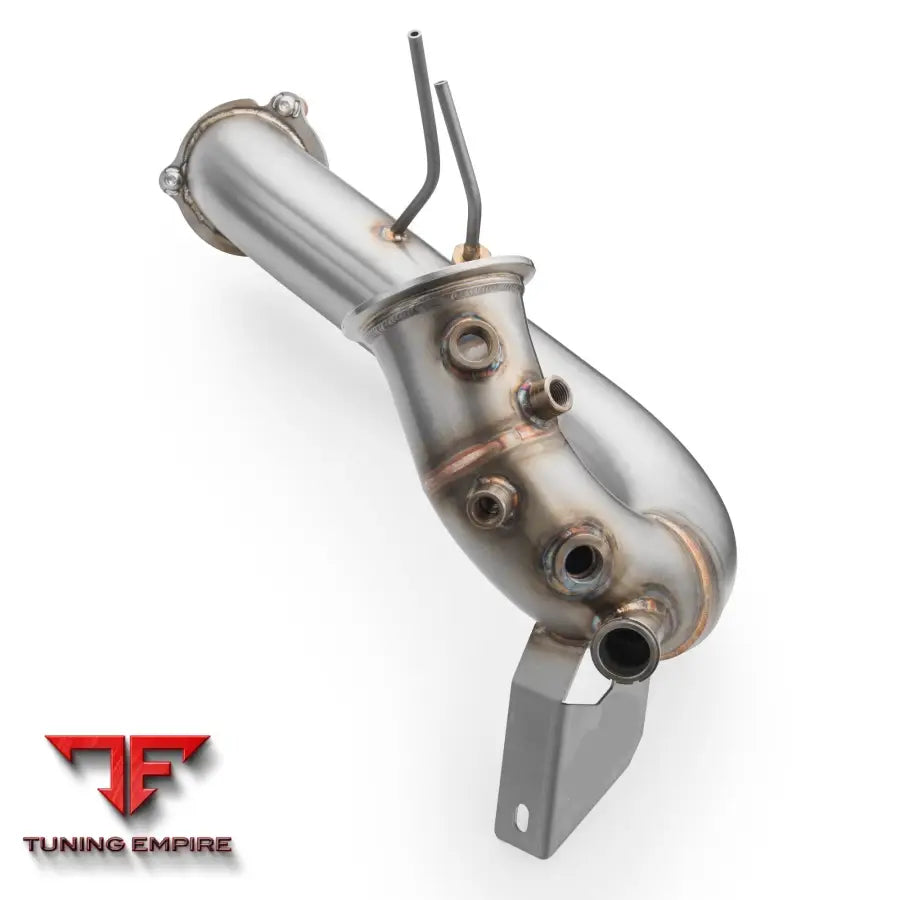

has the following connections:

  • one socket for the lambda probe
  • two pipes for pressure difference sender sensor
  • two sockets for the exhaust gas temperature sensor
  • one socket for NOx sensor
  • socket for injector for reduction agent
  • 3 screws with nuts and washers included

Downpipe AUDI A6 S6 / Avant / Sportback / Avant Quattro 3.0 TDI + thermal shield - OE Numbers:

  • 8W0254750SX
  • 8W0254751CX
  • 8W0254751C
  • 8W0254751BX
  • 8W0254750Q
  • 8W0254750S

Downpipe entirely made of acid-resistant steel (T304, X5CrNi18-10, 1.4301, AISI 304, 0H18N9). Each element of the product made with CNC technology.
