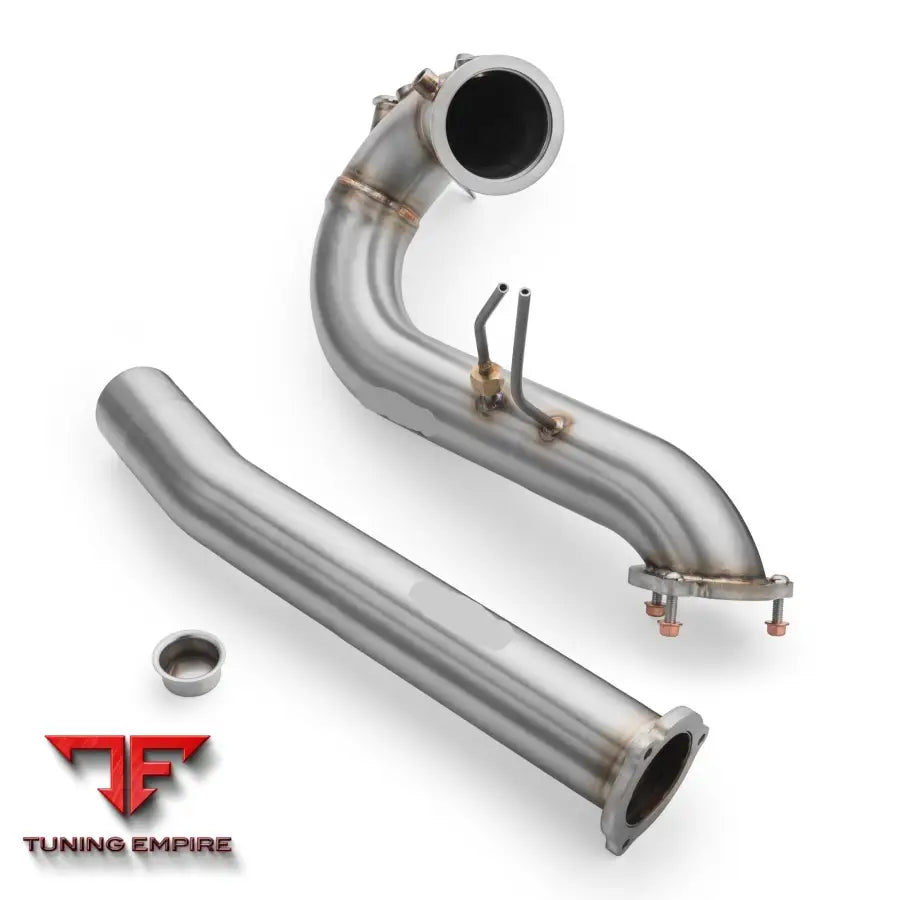

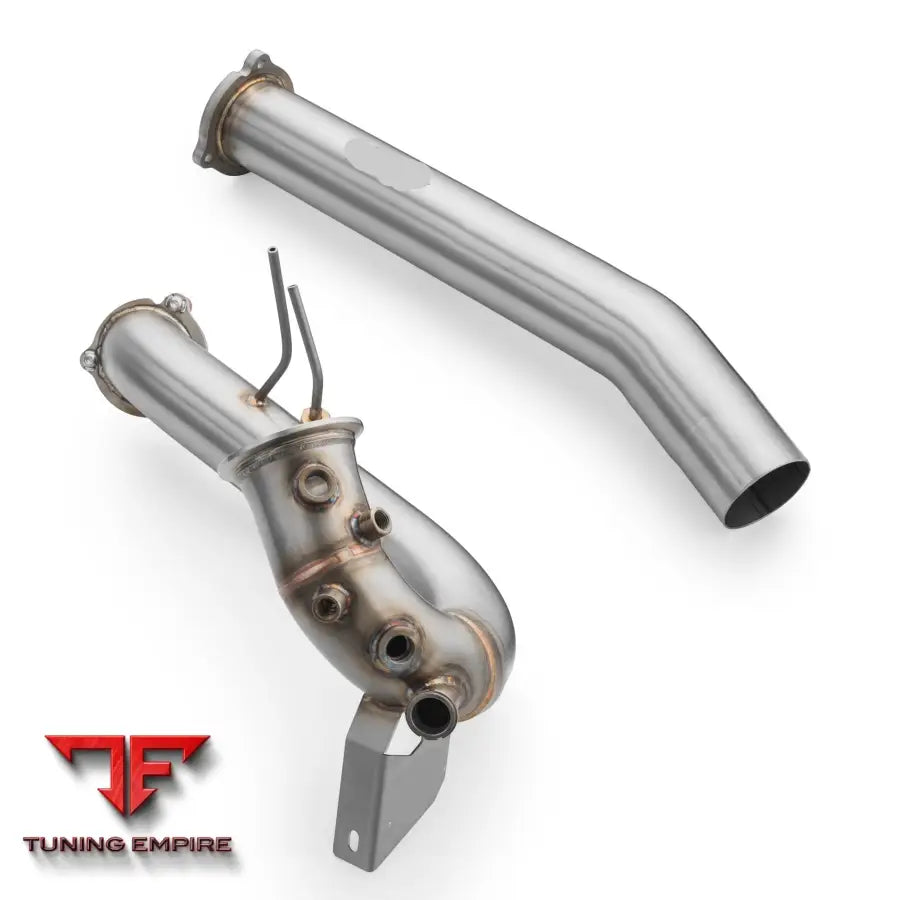

Downpipe set for AUDI Q5 3.0 TDI +heat shield

3.0 TDI
2017-2021
286 hp

Pipe diameter - 76 mm

Downpipe set for AUDI Q5 3.0 TDI + heat shield

Options to choose from:

  • PROM.220109+220110 - Downpipe straight through and Decat without silencer.
  • PROM.220109+220110T - Downpipe straight through and Decat with silencer.
  • PROM.220109S+220110 - Downpipe straight through with muffler and Decat without silencer.
  • PROM.220109S+220110T - Downpipe straight through with muffler and Decat with silencer.
  • PROM.220109H+220110 - Downpipe straight through with heat shield and Decat without silencer.
  • PROM.220109H+220110T - Downpipe straight through with heat shield and Decat with silencer.
  • PROM.220109SH+220110 - Downpipe straight through with silencer in heat shield without silencer.
  • PROM.220109SH+220110T - Downpipe straight through with silencer in heat shield with silencer.
  • PROM.220109C/E6+220110 - Downpipe with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard without silencer.
  • PROM.220109C/E6+220110T - Downpipe with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard with silencer.
  • PROM.220109CH/E6+220110 - Downpipe in heat shield with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard without silencer.
  • PROM.220109CH/E6+220110T - Downpipe in heat shield with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard with silencer.
  • PROM.220109C/OBD+220110 - Downpipe with catalytic converter 90603444 with 200 cpsi capacity, complying with the emission standard for the need of OBD without silencer.
  • PROM.220109C/OBD+220110T - Downpipe with catalytic converter 90603444 with 200 cpsi capacity, complying with the emission standard for the need of OBD with silencer.
  • PROM.220109CH/OBD+220110 - Downpipe in heat shield with catalytic converter 90603444 with 200 cpsi capacity, complying with emission standard for the need of OBD without silencer.
  • PROM.220109CH/OBD+220110T - Downpipe in heat shield with catalytic converter 90603444 with 200 cpsi capacity, complying with emission standard for the need of OBD with silencer.
  • PROM.220109C/MS+220110 - Downpipe with catalytic converter 90603242 with a 100 cpsi capacity, complying with the emission standard for the need of Motorsport without silencer.
  • PROM.220109CH/MS+220110T - Downpipe with catalytic converter 90603242 with a 100 cpsi capacity, complying with the emission standard for the need of Motorsport with silencer.
  • PROM.220109CH/MS+220110 - Downpipe in heat shield with catalytic converter 90603242 with 100 cpsi capacity, complying with the emission standard for the need of Motorsport without silencer.
  • PROM.220109CH/MS+220110T - Downpipe in heat shield with catalytic converter 90603242 with 100 cpsi capacity, complying with the emission standard for the need of Motorsport with silencer.

Downpipe set for AUDI Q5 3.0 TDI + thermal shield
has the following connections:

  • one socket for the lambda probe
  • two pipes for pressure difference sender sensor
  • two sockets for the exhaust gas temperature sensor
  • one socket for NOx sensor
  • socket for injector for reduction agent
  • 3 screws with nuts and washers included
  • EGR plug
  • Decat with or without silencer

Downpipe set for AUDI Q5 3.0 TDI - OE Numbers:

  • 8W0254750SX
  • 8W0254751CX
  • 8W0254751C
  • 8W0254751BX
  • 8W0254750Q
  • 8W0254750S
  • 4K0254450F

Downpipe entirely made of acid-resistant steel (T304, X5CrNi18-10, 1.4301, AISI 304, 0H18N9). Each element of the product made with CNC technology.
