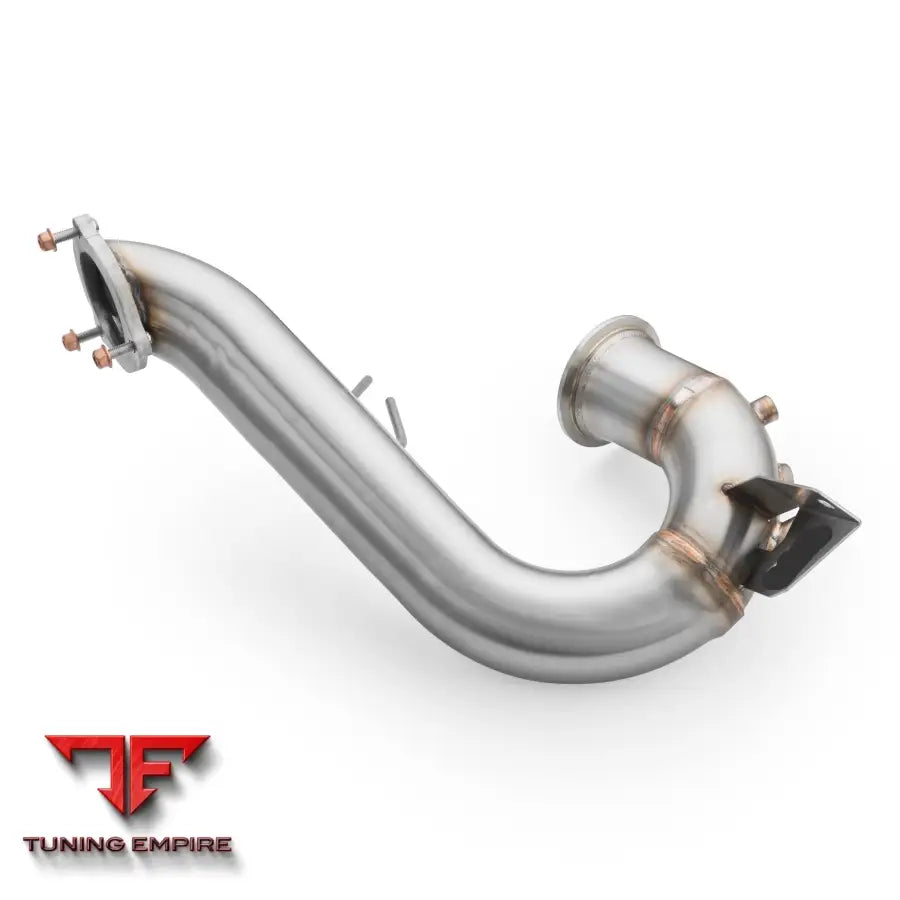

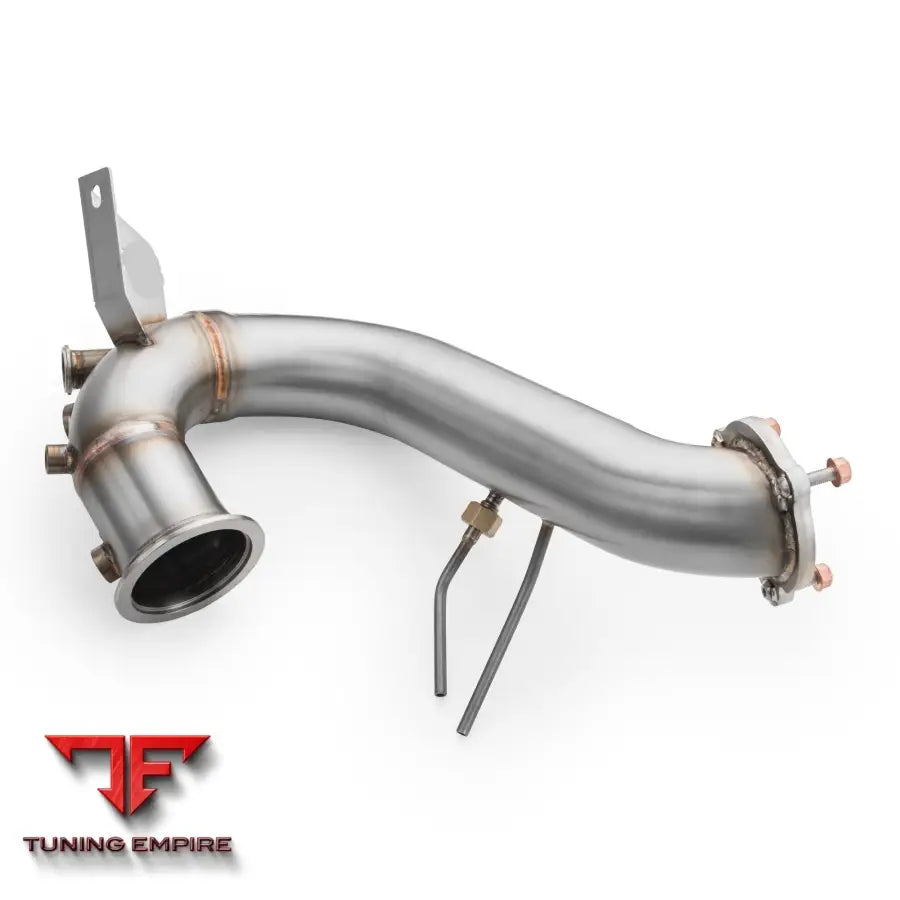

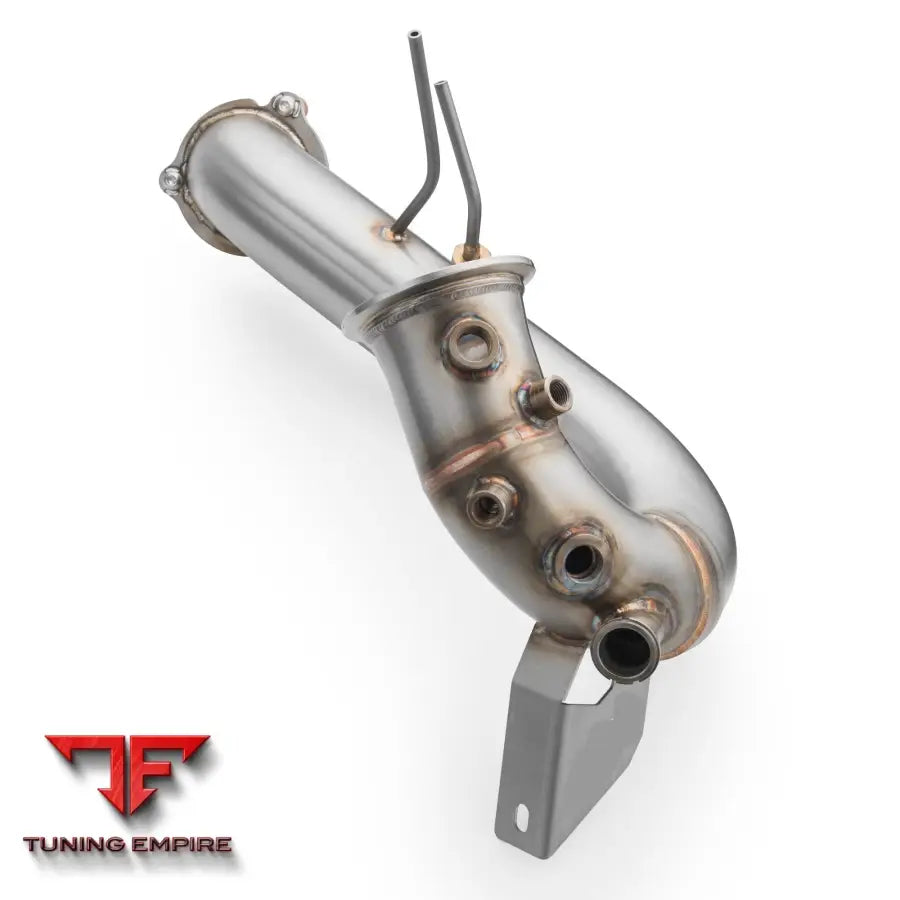

AUDI Q5 3.0 TDI DOWNPIPE WITH HEAT SHIELD
Downpipe AUDI Q5 3.0 TDI +heat shield
3.0 TDI
2017-2021
286 hp
Pipe diameter - 76 mm
Downpipe AUDI Q5 3.0 TDI + heat shield
Options to choose from:
- 220109 - Downpipe straight through.
- 220109S - Downpipe straight through with muffler.
- 220109H - Downpipe straight through with heat shield.
- 220109SH - Downpipe straight through with silencer in heat shield.
- 220109C/E6 - Downpipe with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard.
- 220109CH/E6 - Downpipe in heat shield with catalytic converter 90603344 with 200 cpsi capacity, complying with EURO 6 emission standard.
- 220109C/OBD - Downpipe with catalytic converter 90603444 with 200 cpsi capacity, complying with the emission standard for the need of OBD.
- 220109CH/OBD - Downpipe in heat shield with catalytic converter 90603444 with 200 cpsi capacity, complying with emission standard for the need of OBD.
- 220109C/MS - Downpipe with catalytic converter 90603242 with a 100 cpsi capacity, complying with the emission standard for the need of Motorsport.
- 220109CH/MS - Downpipe in heat shield with catalytic converter 90603242 with 100 cpsi capacity, complying with the emission standard for the need of Motorsport.
Downpipe AUDI Q5 3.0 TDI + thermal shield
has the following connections:
- one socket for the lambda probe
- two pipes for pressure difference sender sensor
- two sockets for the exhaust gas temperature sensor
- one socket for NOx sensor
- socket for injector for reduction agent
- 3 screws with nuts and washers included
Downpipe AUDI Q5 3.0 TDI + thermal shield - OE Numbers:
- 8W0254750SX
- 8W0254751CX
- 8W0254751C
- 8W0254751BX
- 8W0254750Q
- 8W0254750S
Downpipe entirely made of acid-resistant steel (T304, X5CrNi18-10, 1.4301, AISI 304, 0H18N9). Each element of the product made with CNC technology.
