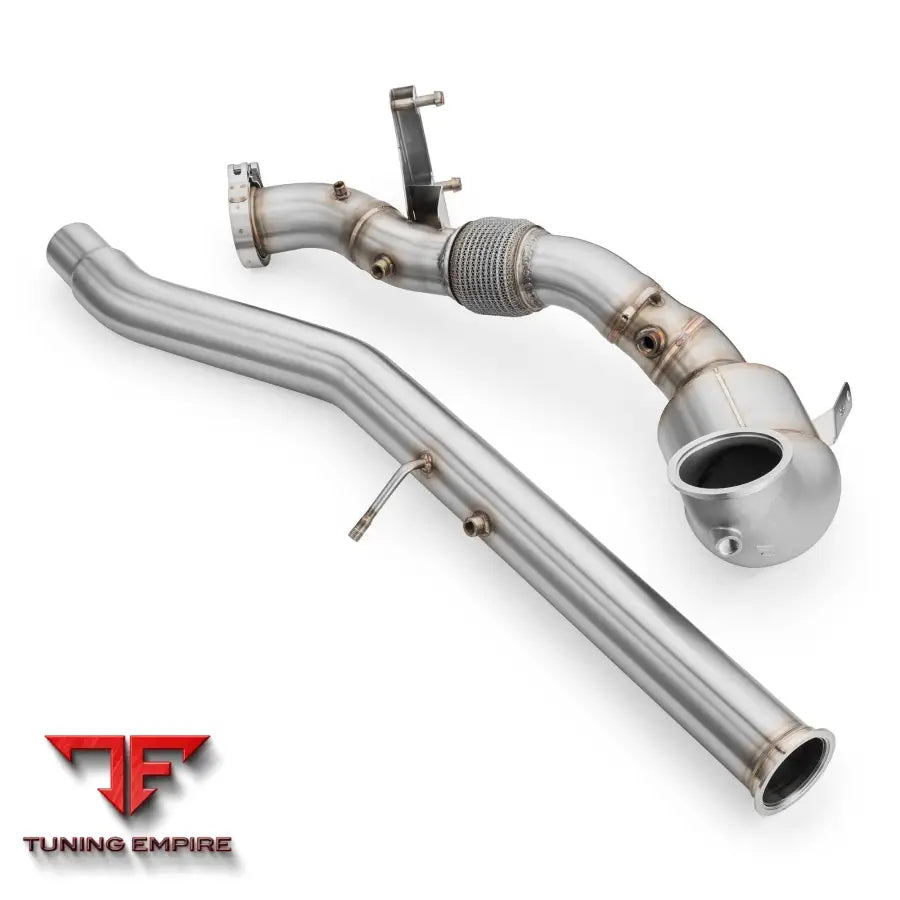

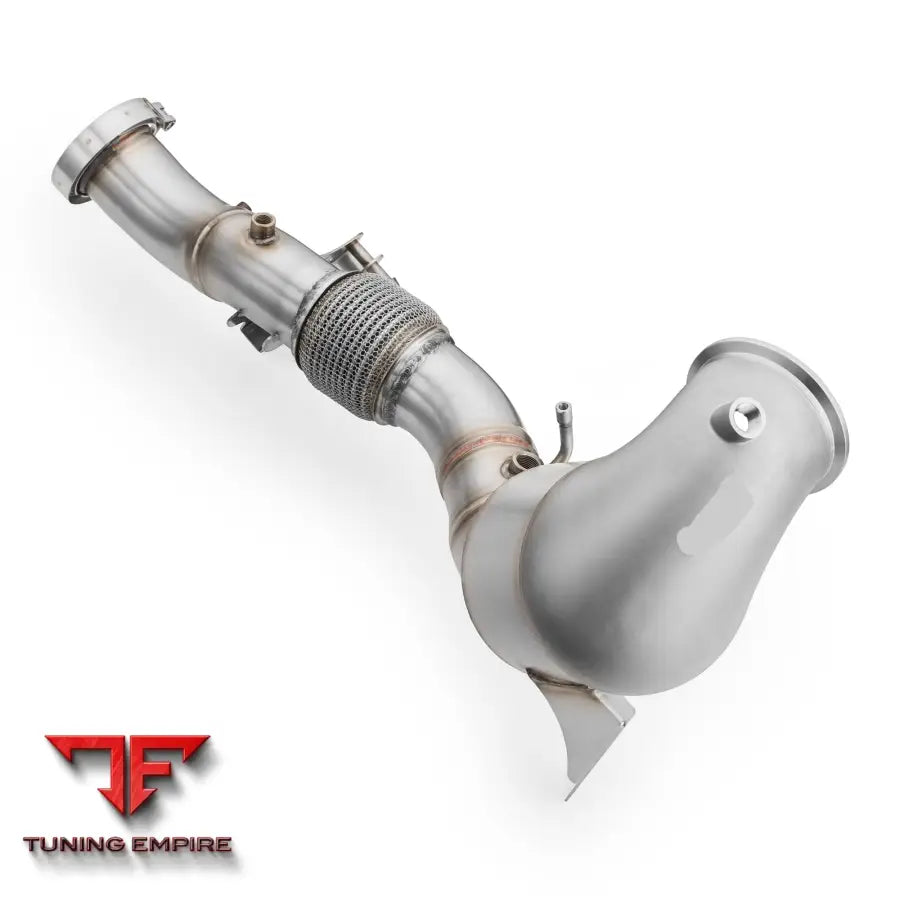

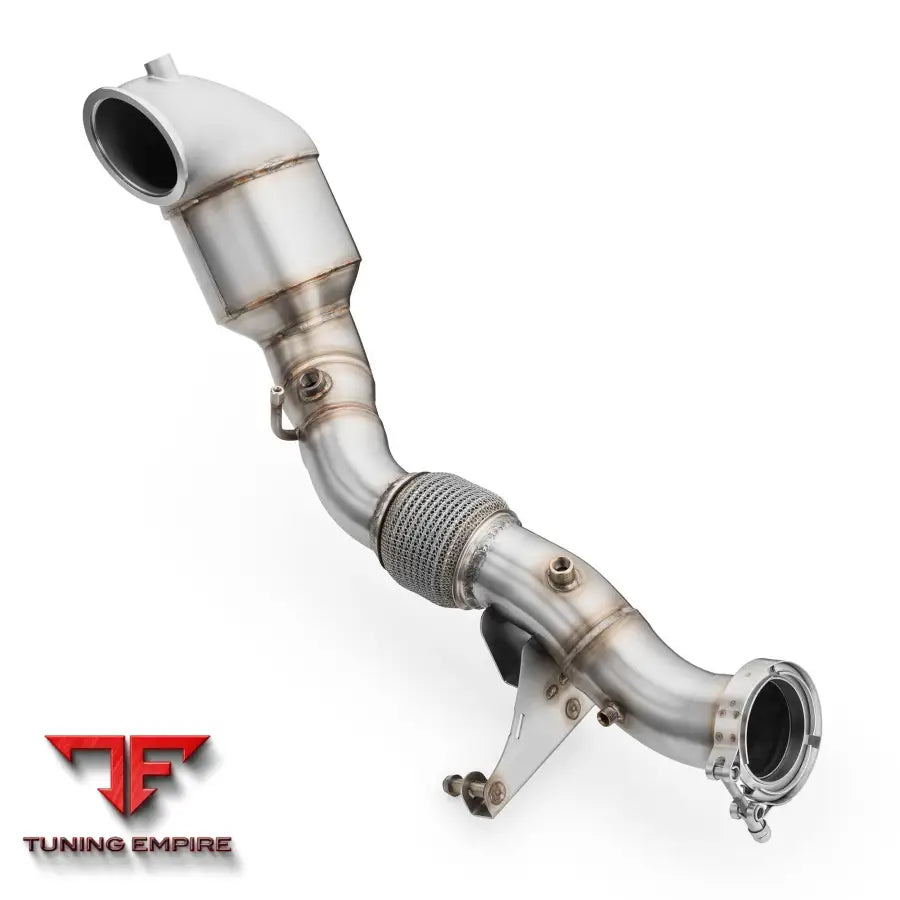

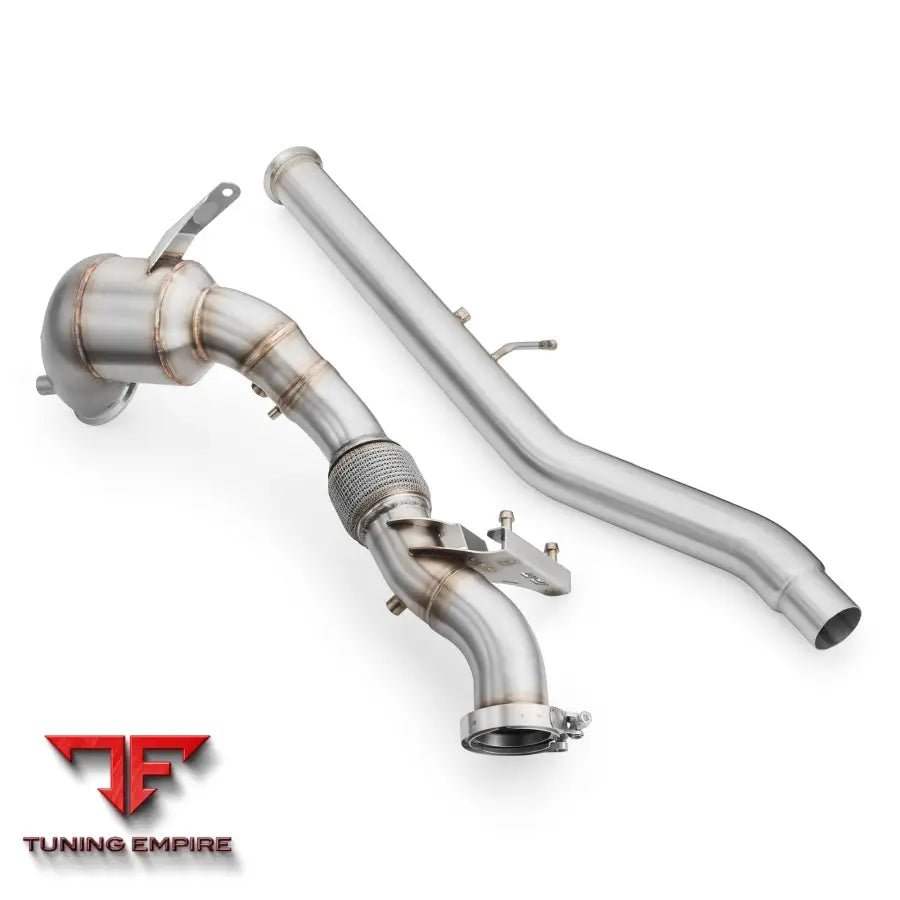

AUDI S3 8Y 2.0 TFSI DOWNPIPE WITH CATALYST

Downpipe Audi S3 8Y 2.0 TFSI with catalyst

2.0 TFSI
2020-
310 bhp
AWD
Fits OPF versions

Casting material - stainless steel AISI 316L
Wall thickness - 3 mm

Pipe Diameter - 89 mm
Diameter at the connection point with V-Band - 76 mm
Diameter at the connection point with the center section - 65 mm

Downpipe Audi S3 8Y 2.0 TFSI with catalytic converter

Options to choose:

• PROM.213520C/MS - Downpipe set with initial pipe and V-band and catalytic converter HJS No. 90603256 meeting the emission standard for the need of Motorsport with a capacity of 100 cpsi, measuring 143x85 mm.
• PROM.213520C/OBD - Downpipe set with initial pipe and V-band and catalytic converter HJS No. 90603498 meeting the emission standard for the need of OBD with a capacity of 100 cpsi, with dimensions of 143x115 mm.
• PROM.213520C/E6 - Downpipe set with initial pipe and V-band and catalytic converter HJS No. 90603398 meeting EURO 6 emission standard with a capacity of 200 cpsi, with dimensions of 143x115 mm.
• PROM.213520C/MS/S - Downpipe set with initial pipe with muffler and V-band and catalytic converter HJS No. 90603256 meeting the emission standard for the need of Motorsport with a capacity of 100 cpsi, with dimensions of 143x85 mm.
• PROM.213520C/E6/S - Downpipe set with initial pipe with muffler and V-band and catalytic converter HJS No. 90603398 meeting EURO 6 emission standard with a capacity of 200 cpsi, measuring 143x115 mm.
• PROM.213520C/OBD/S - Downpipe set with initial pipe with muffler and V-band and catalyst HJS No. 90603498 meeting the emission standard for the need of OBD with a capacity of 100 cpsi, with dimensions of 143x115 mm


Downpipe Audi S3 8Y 2.0 TFSI downpipe
has the following connections:

• 2 sockets for the lambda probe
• 2 sockets for the exhaust gas temperature sensor
• Downpipe fixing element
• Differential pressure sensor
• Reinforced mount to stiffen the structure


Downpipe Audi S3 8Y 2.0 TFSI - OE numbers:

• 5WA254500TX
• 5WA254500T
• 5WA131701
• 5QA254504DX

Each part of the Downpipe Audi S3 8Y 2.0 TFSI has been made using CNC technology.
